MMwave Human Presence Sensor

Introducing our Motion sensors using millimeter-wave (mmWave) technology offer distinct advantages over traditional passive infrared (PIR) sensors. Firstly, mmWave sensors provide much finer motion detection capabilities, allowing them to detect even subtle movements with high precision, mmWave sensors are not affected by changes in temperature or ambient lighting, ensuring reliable detection in varying conditions.

Another advantage is their ability to detect a wider range of motion patterns, making them suitable for applications where specific movement needs to be recognized.

Additionally, mmWave sensors can operate effectively through obstacles and walls, enabling more flexible placement options. These sensors excel in smart lighting and building automation systems, offering enhanced accuracy and customization for a wide range of applications.

Category:

FEATURES:

Network: ZigBee / Wifi.
Celling mount sensor input: 80-240VAC.
Wall mount sensor input: USB 5V.
Working temperature: -20°C~+70°C
Sensitivity: 1-9(default 7)
Wall mount sensor sensing distance: 0.3-9m(Default 6m).

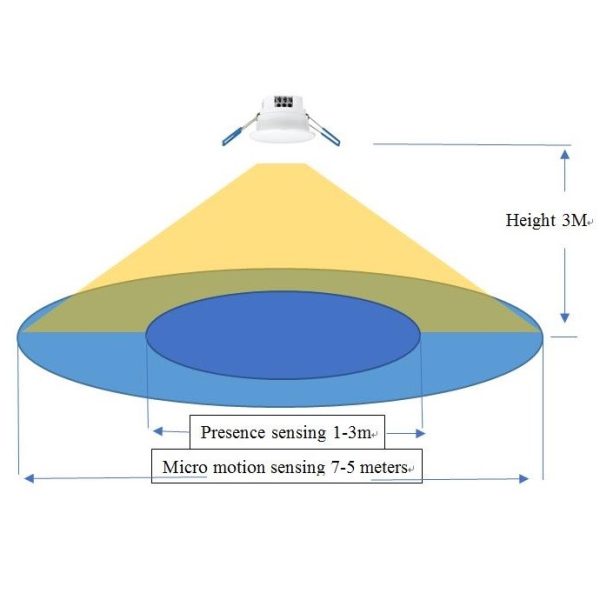

Celling mount sensor sensing radius: 0-7m(Default 5m).
Illuminance Sensor: 0-2000 LUX.
Target detection confirmation time:0-10s
Target disappearance delay time:2-1500s.
Presence Detection: It can detect the human body in the stationary state.
Fretting Detection: It can detect small movements such as tilting the head, waving, raising the hand, flicking the body, playing with the mobile phone, turning over the book, etc.

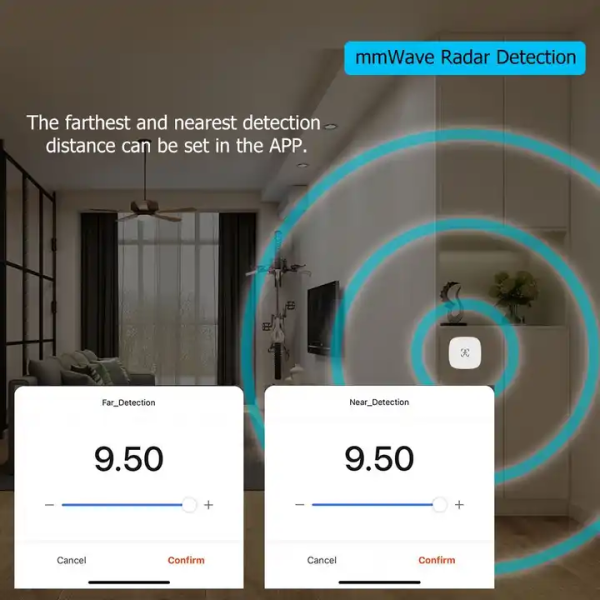

Distance measurement: The target distance measurement function can accurately filter targets outside the area
